  • High voltage output voltage: the stored energy voltage can range from 401V to 2500V. Low voltage output voltage: the stored energy voltage can range from 10V to 400V.
  • LAWSON-2C
  • Gene Transfer Instrument
  • High voltage output voltage: the stored energy voltage can range from 401V to 2500V. Low voltage output voltage: the stored energy voltage can range from 10V to 400V.
Electroporation can be used to introduce DNA into competent bacteria, animal and plant cells, and yeast cells. Compared to chemical methods, electroporation can achieve higher transformation efficiency. This method has better reproducibility than other methods, is easy to operate and saves time, and has high import efficiency. It has become an indispensable basic technique in molecular biology.
Product Introduction
Electroporation can be used to introduce DNA into competent bacteria, animal and plant cells, and yeast cells. Compared with chemical methods, electroporation can achieve higher transformation efficiency. This method has better repeatability than other methods, is easy to operate, saves time, and has high import efficiency. It has become an indispensable basic technology in molecular biology.

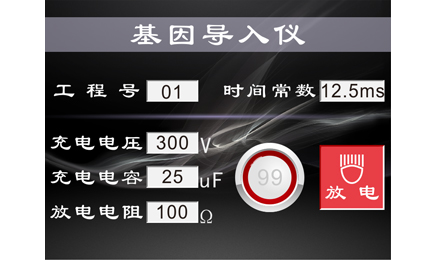

The gene delivery system (electroporator) has an integrated design, is easy to operate, and has an intuitive display. The microprocessor-controlled pulse discharge uses a human-machine dialogue interface, which is simple and intuitive to operate, and refines the setting range of capacitance and resistance, making the cell electroporation experiment have a wider range of choices under relevant conditions.


Product Features
◆ High transformation efficiency - short transformation time and excellent repeatability;
◆ Free storage - can store experimental data (customizable storage);
◆ Precise control - uses microprocessor control (pulse discharge);
◆ Exquisite design - ultra-compact design simplifies installation and optimizes workspace;
◆ Microprocessor control - simple and intuitive operation, and refined setting range of capacitance and resistance.


Technical Parameters
Model: LAWSON-2C
Pulse Form: Exponential Decay
High Voltage Output Voltage: Stored energy voltage can be set freely from 401V to 2500V with an accuracy of 1V.
Low Voltage Output Voltage: Stored energy voltage can be set freely from 10V to 400V with an accuracy of 1V.

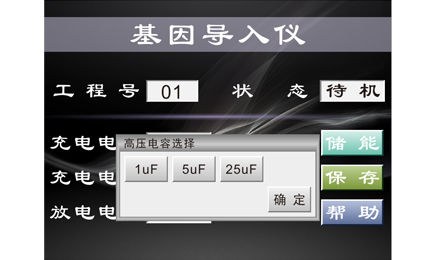

High Voltage Capacitance: There are seven settings available: 1μF, 5μF, 25μF, as well as their combinations such as 6μF, 26μF, 30μF, and 31μF. These settings can be adjusted freely.
Low Voltage Stored Energy Capacitance: There are 63 settings available: 25μF, 50μF, 100μF, 200μF, 400μF, 800μF, as well as their combinations such as 125μF, 150μF, 175μF, 200μF, up to 1575μF. The minimum capacitance is 25μF with a step size of 25μF.
Discharge and Connection Resistance: There are 32 settings available: 50Ω (fixed), 50Ω, 100Ω, 200Ω, 400Ω, 800Ω, and ∞, as well as their combinations such as 50Ω, 100Ω, 150Ω, up to 1600Ω. These settings can be adjusted freely. The minimum resistance is 50Ω, and the maximum is 1600Ω, with a step size of 50Ω. There is also an infinite resistance setting available.
Power Supply: Single phase 220V, 50HZ, 200W
Time Constant: With adjustable RC time constant
Main Unit Net Weight: 12.8kg
Package Size: 640*380*350 mm




Single Page - Color Page
Name: Author: Action:
Gene Transfer Instrument      LAWSON-2C Other_instruments Download







Product List
LAWSON-2C Unit
Host Machine Unit
2mm Gene Transfection Kit (Imported) unit
3A Fuse unit
Connecting wire pair
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
2
1
1
1
1
1
