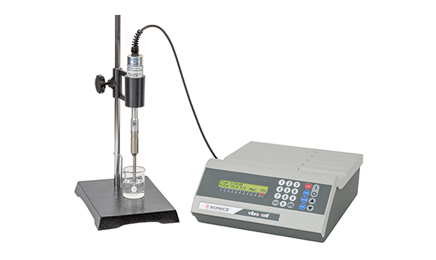

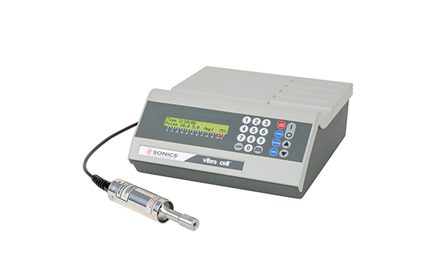

sonics VCX130: a 130-watt ultrasonic liquid processor with a timer and a pulsar for safe processing of a wide range of organic and inorganic materials from 150 μL to 150 mL for small-batch applications. Typical applications include biotech and pharmaceutical processing, including mixing, dispersing, and sample preparation use.
Product Introduction
sonics VCX130: a 130-watt ultrasonic liquid processor with a timer and a pulsar for safe processing of a wide range of organic and inorganic materials from 150 µL to 150 mL for small-batch applications. Typical applications include biotech and pharmaceutical processing, including mixing, dispersing, and sample preparation use.


Product Features

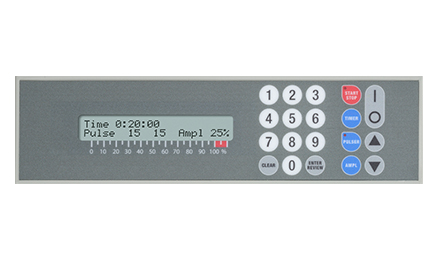

◆Energy monitor
◆1-59 second independent on/off pulse generator
◆Digital voltmeter
◆Elapsed time indicator
◆10-hour timer
◆Variable power output control


Experimental Objectives
1. Understand the basic principles of ultrasonic cell disruption.
2. Master the basic techniques of ultrasonic cell disruption.


Principle of Experiment
When strong sound waves act on a solution, the cavitation phenomenon of bubble generation, growth, and rupture is related. The shock waves and shear forces caused by cavitation phenomenon cause cell lysis.
Materials and Reagents
10ml bacteria, beaker, crushed ice, 75% alcohol cotton ball.


Probe Selection
Probe Model and Size Cell Disruption Capacity
2mm 150ul-5ml
3mm 250ul-10ml
6mm 10ml-50ml


Technical Parameters
Model: VCX 130
Frequency: 20KHz
Power: 130W
Timing device: 1s-10hr
Pulse excitation device: Off: Manual On: 1-59 seconds adjustable
Inverter model: CV18
Standard amplitude bar: Φ6mm
Standard amplitude bar length: 113mm
Overall size of amplitude bar: 115 x 250 x 320 mm
Amplitude bar material: Titanium alloy Ti-6Al-4V
Standard amplitude bar processing capacity: 10ml to 50ml
Optional amplitude bar: Φ2mm, Φ6mm, Φ13mm
Amplitude bar weight: 340g
Amplitude bar cable length: 1.5m
Duty cycle: 1-99%
Power adjustment range: Continuously adjustable (20-130w)
Temperature protection setting: /
Power amplitude display: Yes
Working frequency range: Energy monitor digital wattmeter automatic tuning and automatic amplitude compensation
Working mode: Pulse/continuous
Power supply: 220/110V 50Hz/60Hz or unless otherwise specified, the power requirement is sent at 117V, 50/60Hz
Net weight: 3.2kg
Main unit + transducer weight: 3340g
Product List
VCX130 Unit
Host Machine Unit
Toolbox set
Power cord piece
Soundproof box set
Special Crushing Cup Piece
User manual copy
Description
1
1
1
Optional
Optional
1
